The Lilliput 779GL-70NP/C/T is a 7 inch 16:9 LCD capacitive touchscreen monitor with HDMI, DVI VGA and composite video inputs. Compatible with both Windows, Linux and Android natively, this monitor is suited to many uses - such as education, process control, access control - as well as being a handy companion for the home coder.


Looking for a monitor to use in a Teleprompter? No problem - this model features both X/Y Flip and Mirroring of the input image, making it an ideal tool for the job.


Click Here For Full Specification Sheet



Excellent Display Clarity and Touchscreen Fidelity

Featuring a 7” 1000nit bightness panel with a 800×480 HD resolution, the Lilliput 779GL-70NP/C/T is a top flight piece of small screen hardware. With 800:1 high contrast, 170° wide viewing angles, and a high density laminative Capacitive Touchscreen you get an overall smooth and polished experience.

 Wide Voltage Power & Low Power Consumption

Built with high level components to support anywhere between a 7 and 24V power supply voltage, the 779GL-70NP/C/T can be used in the the field, in a vehicle, as well as comfortably in a studio or home office. It's versatility and adaptability make it an excellent choice for



I/O control interface

In the form of a small cable which attaches to the side of the monitor, the I/O control interface has functions such as connecting with reverse trigger line in car reversing system, and

computer control so you can switch on/off the host machine. Functions also can be customized to meet different demands - please send us a message and we'll be happy to discuss it!

Lux Auto Brightness (optional)

A light sensor designed to detect ambient lighting conditions adjusts the panel’s brightness automatically,

making viewing more convenient & more power efficient.




Monitor Specification
Screen Size (diagonal)7 inch
Aspect Ratio16:9
Native Resolution800×480 (native)
Maximum Resolution1920×1080 (maximum)
Viewing Angle (degrees)140º x, 120º y
Brightness Ratio (cd/m2)400
Contrast Ratio500:1
BacklightLED
Video InputsHDMI, DVI, VGA, composite
Touchscreen TechnologyCapacitive multitouch, USB
Input PowerDC 12V
Operating Temperature-20 ~ 60 degrees
Mounting OptionsVESA 75, ¼ inch BSW thread, vertical slot mount mechanism
Contents Of Box
Product1 x 779GL-70NP/C/T monitor
Connection Cables1x HDMI (touch) cable, 1x VGA (touch) cable, 1 x I/O control line, 1 x A/V input cable,
Power Adaptor1x DC 12V plug (available in UK, US and EU style), 1x in-car cigarette lighter DC 12V adapter
Mounts and standsMount options available
Additional accessories

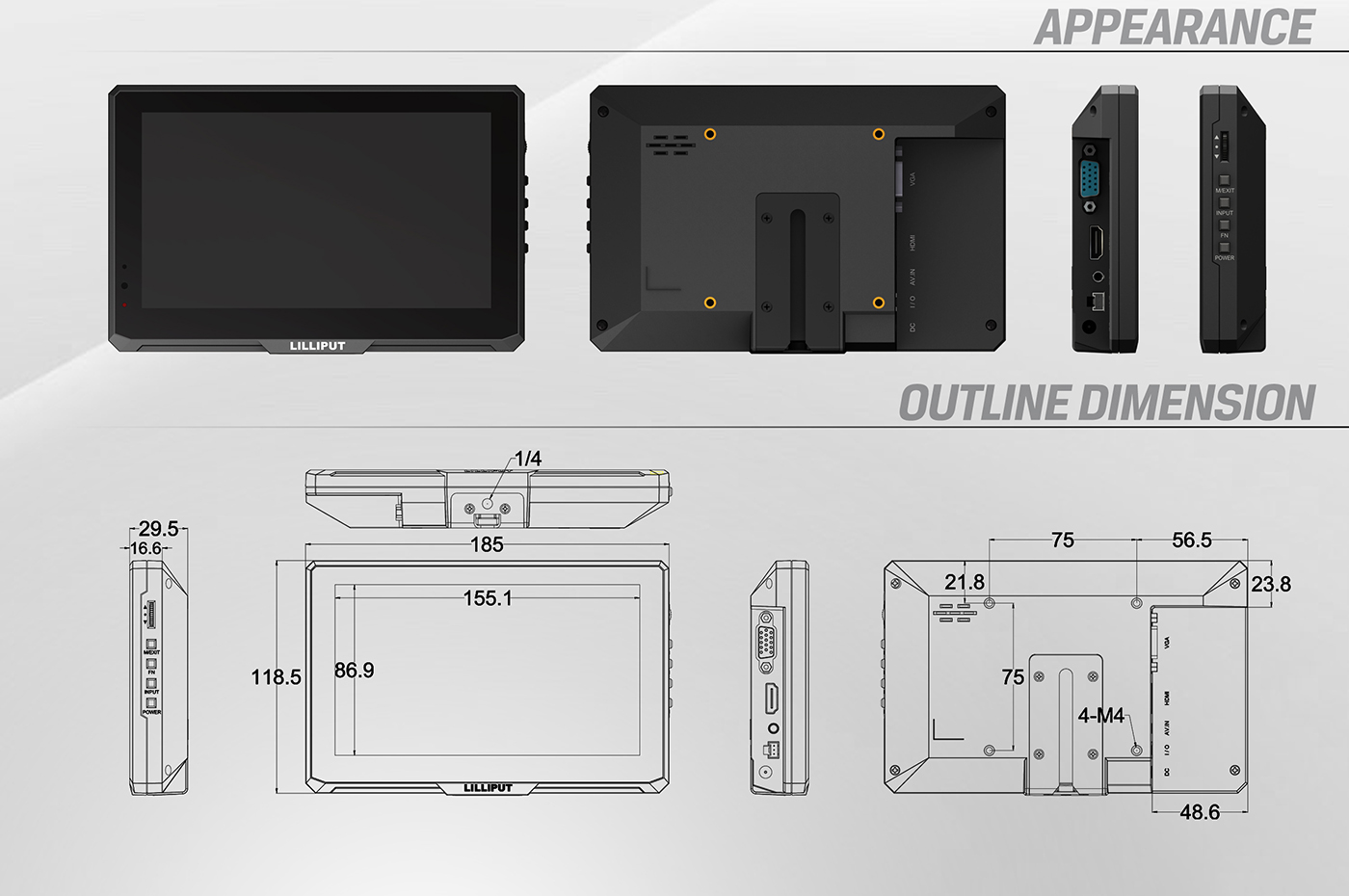

Dimensions
Height (mm)118.5
Width (mm)185
Depth (mm)29.5
Weight (g)415



Monitor Specification
Screen Size (diagonal) 7 inch
Aspect Ratio 16:9
Native Resolution 800×480 (native)
Maximum Resolution 1920×1080 (maximum)
Viewing Angle (degrees) 140º x, 120º y
Brightness Ratio (cd/m2) 400
Contrast Ratio 500:1
Backlight LED
Video Inputs HDMI, DVI, VGA, composite
Touchscreen Technology Capacitive multitouch, USB
Input Power DC 12V
Operating Temperature -20 ~ 60 degrees
Mounting Options VESA 75, ¼ inch BSW thread, vertical slot mount mechanism
Contents Of Box
Product 1 x 779GL-70NP/C/T monitor
Connection Cables 1x HDMI (touch) cable, 1x VGA (touch) cable, 1 x I/O control line, 1 x A/V input cable,
Power Adaptor 1x DC 12V plug (available in UK, US and EU style), 1x in-car cigarette lighter DC 12V adapter
Mounts and stands Mount options available
Additional accessories
Dimensions
Height (mm) 118.5
Width (mm) 185
Depth (mm) 29.5
Weight (g) 415

Lilliput 779GL-70NP/C/T - 7" HDMI Capacitive Touchscreen monitor

  • Brand: Lilliput
  • Product Code: 779GL-70NP/C/T
  • EAN: 6950821600979
  • Availability: In Stock
  • 226.80€

  • Ex Tax: 189.00€
