The LT-101 Ruggedised Tablet PC is a 10.1" portable PC system designed to be used in an indoor / in vehicle environment. Protected to an IP65 standard it has an Intel Cherrytrail Z8350 processor, 4GB RAM, and a 32GB eMMC storage capability built onboard.
Configurable in any number of ways, the LT101 can be installed in vehicles, carried by hand, and used on a desk / table. With the IP65 protection that the unity has, you can also install it into messy working environments with liquid spill hazards and dust ingress to be protected against.

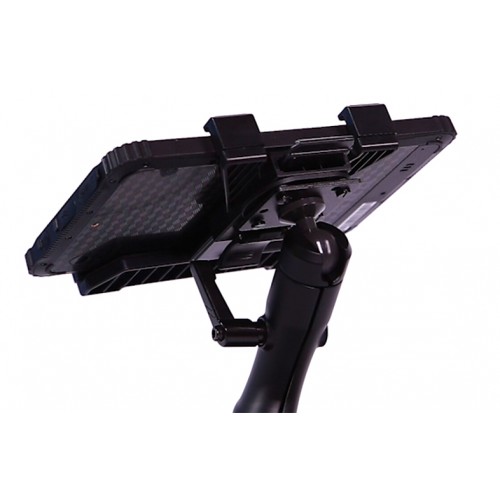

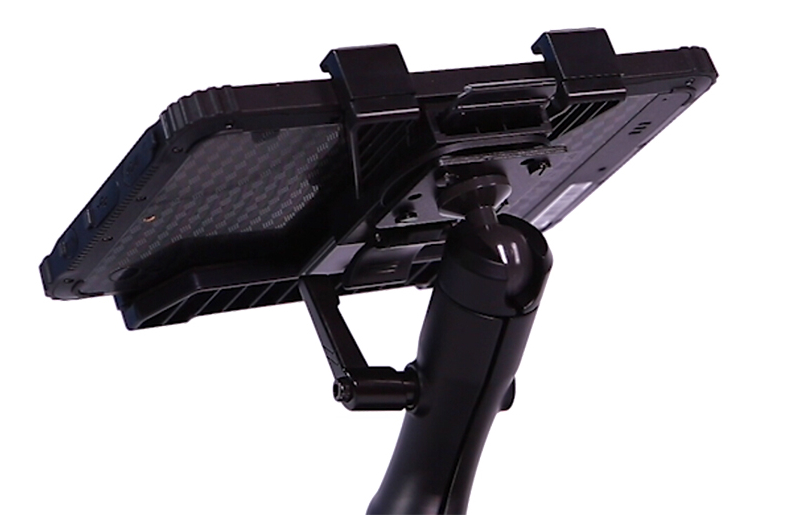

In-vehicle mounting:-
| Panel PC Specifications | |
| Operating System | Windows 10 Home or Professional (not activated - license sold separately) |
| Processor | Intel CherryTrail Z8350 1.92GHz |
| RAM Memory | 4GB DDR3L |
| Internal Storage | 32GB eMMC |
| Graphics | Intel HD Graphics (Gen 7) |
| Networking | Wifi - 802.11a/b/g/n 2.4 + 5.8GHz // Bluetooth 4.0 // GPS, GLONASS, QZSS |
| I/O Connections (additional) | 1x USB 2.0, 1x Headphone, 1x HDMI Out, 1x TF Slot, 1x 12 Pin Pogo Pin |
| Chassis | Plastic - Black Front / Back - **IP65 RATED** |
| Screen Size (diagonal) | 10.1" |
| Aspect Ratio | 16:9 |
| Cellular Connectivity | IC:H350-A50-10 bands：WCDMA(900/2100MHz) GSM（900/1800MHz），HSDPA 21Mbps，HSUPA 5.76 21Mbps ///--------------/// Optional : FIBOCOM_L830-GL M.2 band：5mode11frequency: LTE FDD Band 1,3,5,7,8,20,TDD Band 38,39,40,41，WCDMA Band Ⅰ,Ⅷ, TD-SCDMA Band A, F, GSM/GPRS/EDGE 900/1800MHZ） |
| Resolution | 1280 x 800 IPS - 400cdm² |
| Touchscreen Technology | Capacitive 10 Point G & G 7H Anti Scratch Coated |
| Dimensions | |
| Height (mm) | 195mm |
| Width (mm) | 272mm |
| Depth (mm) | 22mm |
LT-101 - 10.1" Ruggedised Tablet PC
 | Customisation Options Are AvailableYou can customise many options with all units of Lilliput product - from custom logos to input types to customised bezel and mounting options. To discuss your requirements please contact us via email Here or give us a call on +44 (0)8450068868 |
