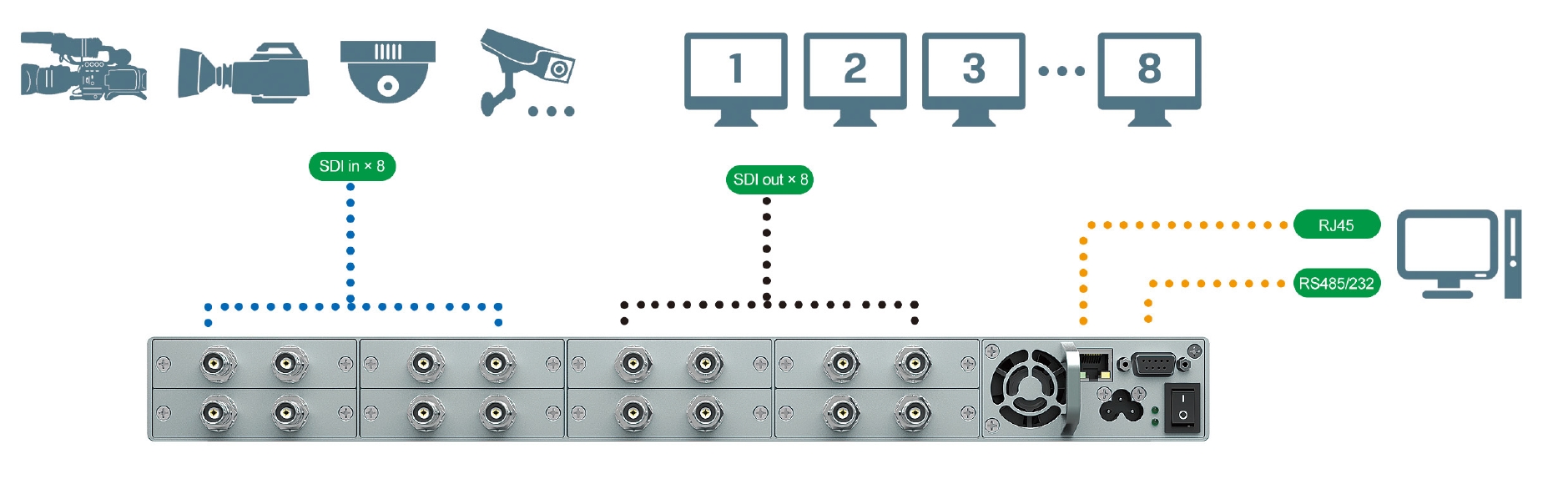

The AVMatrix MSS0811 is an 8 x 8 3G-SDI Matrix Switcher (YUV). It accepts 8 channels of input, and can drive them to 8 separate output feeds, controlled by manual switches on the front of the device.


  • 8 x 8 Channels 3G-SDI Matrix Switcher
  • YUV Color Space
  • 1U Standard Rackmount
  • Seamless Signal Switching - no black screen or snow
  • Pluggable modular cards, flexible configuration
  • LCD screen for system status
  • Front panel button control
  • RS232/4585/RJ45 port for remote control
  • Output supports up / down scaling and frame rate conversion
  • Equanlization and reclocking with professional rejitter
  • Automatic test pattern generator



SDI Input
No. of Inputs8x
Bit Rate270Mbps - 2.97Gbps
Connector (SDI)BNC Compliant to IEC169-8 Standards
Signal Amplitude (SDI)800mV +- 10% (75 Ω)
Impedance (Input)75Ω
SDI Output
Bit Rate270Mbps - 2.97Gbps
Connector (SDI)BNC Compliant to IEC169-8 Standards
No. of Outputs8x
Signal Amplitude (SDI)800mV +- 10% (75 Ω)
Common Parameters
Operating VoltageAC 110-250V
Power<18W
Storage Humidity (%RH)0% - 90% RH
Storage Temperature (°c)-20°c to 75°c
Weight (g)2.8KG
Working Humidity (%RH)20% - 70% RH
Working Temperature (°c)0°c-50°c
SDI Input
No. of Inputs 8x
Bit Rate 270Mbps - 2.97Gbps
Connector (SDI) BNC Compliant to IEC169-8 Standards
Signal Amplitude (SDI) 800mV +- 10% (75 Ω)
Impedance (Input) 75Ω
SDI Output
Bit Rate 270Mbps - 2.97Gbps
Connector (SDI) BNC Compliant to IEC169-8 Standards
No. of Outputs 8x
Signal Amplitude (SDI) 800mV +- 10% (75 Ω)
Common Parameters
Operating Voltage AC 110-250V
Power <18W
Storage Humidity (%RH) 0% - 90% RH
Storage Temperature (°c) -20°c to 75°c
Weight (g) 2.8KG
Working Humidity (%RH) 20% - 70% RH
Working Temperature (°c) 0°c-50°c

AVMatrix - MSS0811 - 8 x 8 3G SDI Matrix Switcher (YUV)

  • Product Code: MSS0811
  • Availability: 2-3 Days
  • 1,169.27€
