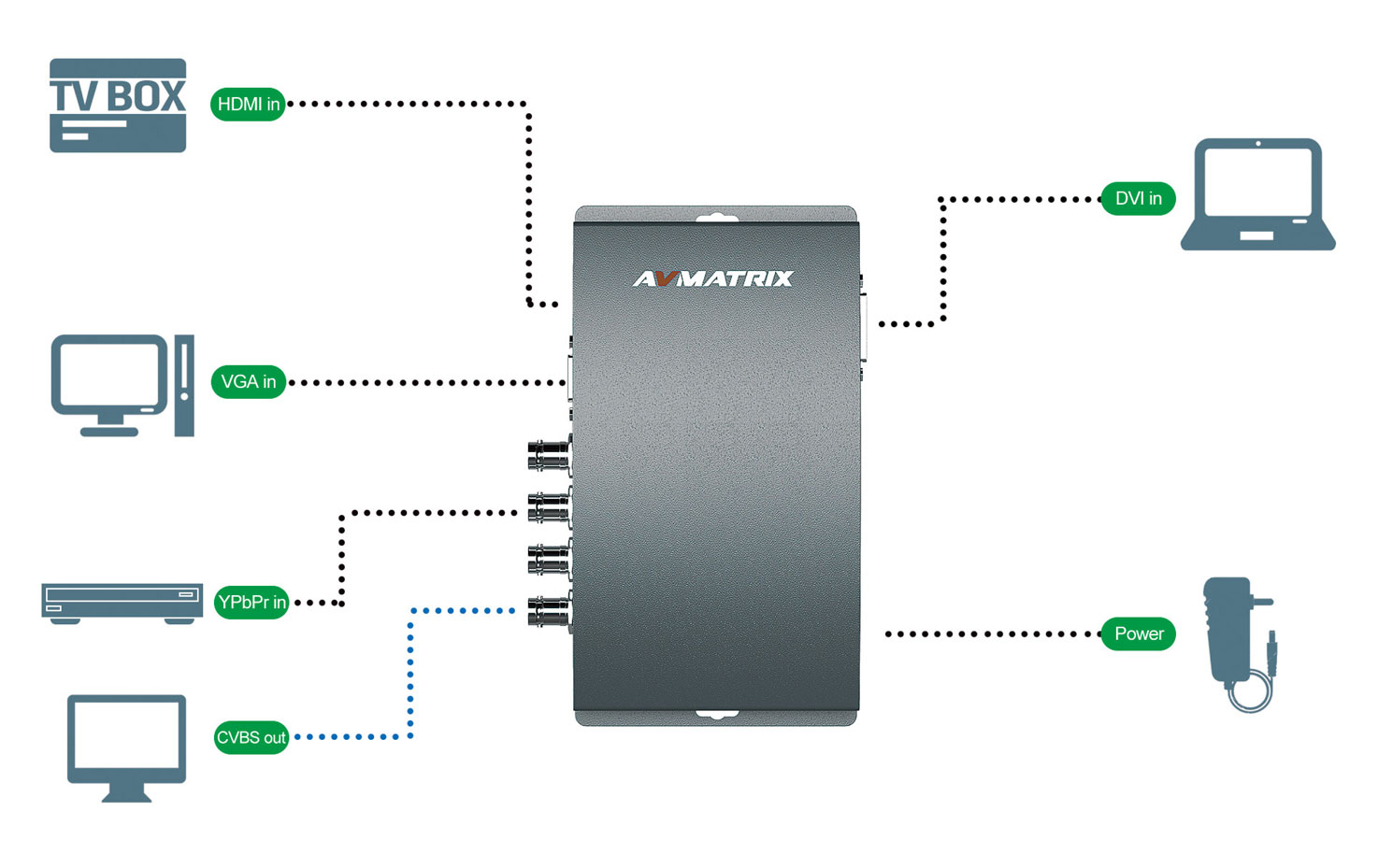

The AV Matrix SC4014 converts HDMI/YPbPr/DVI/VGA input signals to 1 x CVBS signal. The active input signal and the scaling and frame rate of the CVBS output can be controlled by the dual rotary DIP switches.




Input
Input Signal HDMI x 1, YPbPr x 1, DVI x 1, VGA x 1
CVBS Output
Output Signal Standard CVBS signal
Connector BNC compliant IEC169-8 standard
Output Format NTSC, PAL
Signal Amplitude 800mV +-10%(75ohm)
Impedance 75 ohm
Common Parameters
Operating Voltage DC 5-12 V
Power <3W
Weight 0.45kg
Dimensions 182 x 95 x 30mm
Working Temperature 0 ~ 50 degrees
Storage Temperature -20 ~ 75 degrees
Working Humidity 20% ~ 70% RH
Storage Humidity 0% ~ 90% RH

CVBS Output
Connector BNC compliant IEC169-8 standard
Impedance 75 ohm
Output Format NTSC, PAL
Output Signal Standard CVBS signal
Signal Amplitude 800mV +-10%(75ohm)
Input
Input Signal HDMI x 1, YPbPr x 1, DVI x 1, VGA x 1
Common Parameters
Dimension 182 x 95 x 30mm
Operating Voltage DC 5-12 V
Power <3W
Storage Humidity (%RH) 0% ~ 90% RH
Storage Temperature (°c) -20°c to 75°c
Weight (g) 450g
Working Humidity (%RH) 20% ~ 70% RH
Working Temperature (°c) 0°c to 50°c

AVMatrix SC4014 - Multi-signal to CVBS Converter

  • Brand: AVMatrix
  • Product Code: AV Matrix SC4014 - Multi-signal to CVBS Converter
  • Availability: Pre-Order
  • 730.25€
